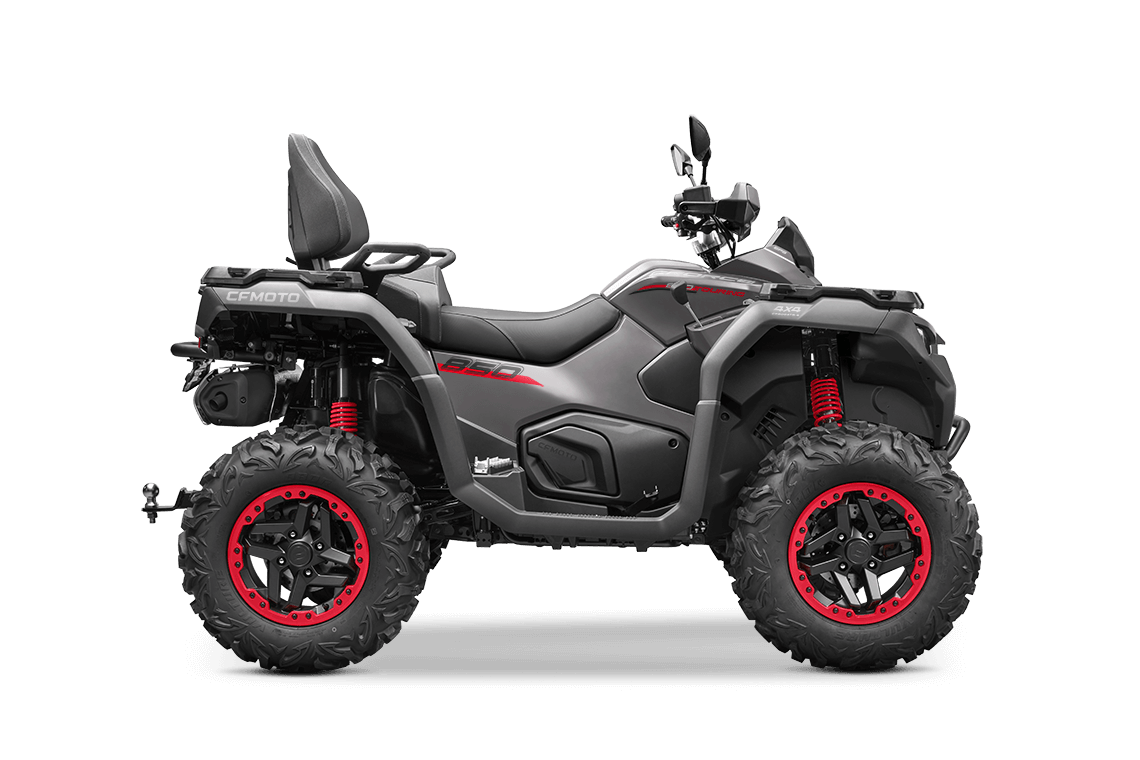

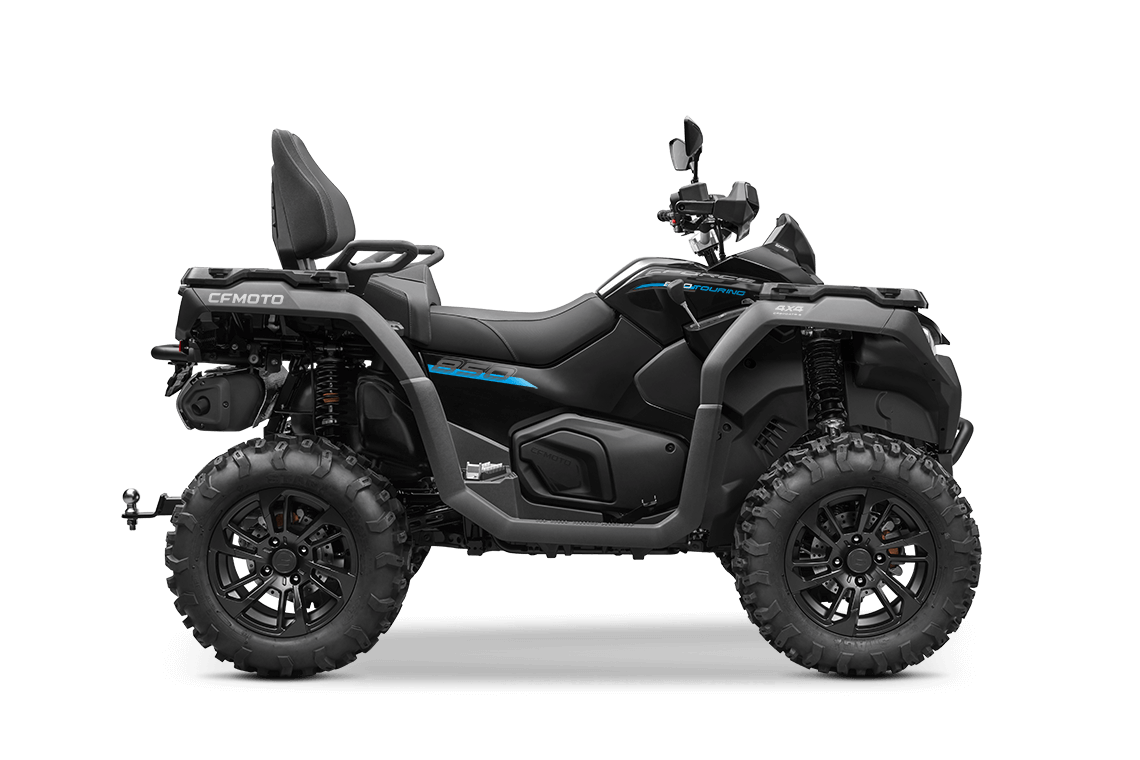

CFORCE 850 TOURING

More power, more advanced technology and capability, unbeatable funcionality, with undiluted dose of off-road excitement. The CFORCE 850 TOURING is the top-class ATV that tackles every terrain and challenges with an attitude that manifests “unstoppable” and leaves the competition in the dust

Specifications

Engine Type

V-Twin, liquid cooled, 4-stroke, SOHC, 8-valve

Displacement

800cc

Maximum Power

75hp@7500rpm

Maximum Torque

70Nm@5500rpm

Fuel Supply

Bosch EFI

Power Modes

Sport/Normal/Work

Transmission

CVT, P-R-N-H-L

Length x Width x Height

2445 x 1264 x 1450mm

Wheelbase

1480mm

Ground Clearance

285mm

Curb Weight

465kg

Towing Capacity

820kg / 800kg EU

Load Capacity

300kg

Carry Capacity

45kg/90kg, CF-Connect with convertible racks

Winch

3500lbs

Fuel Capacity

26L

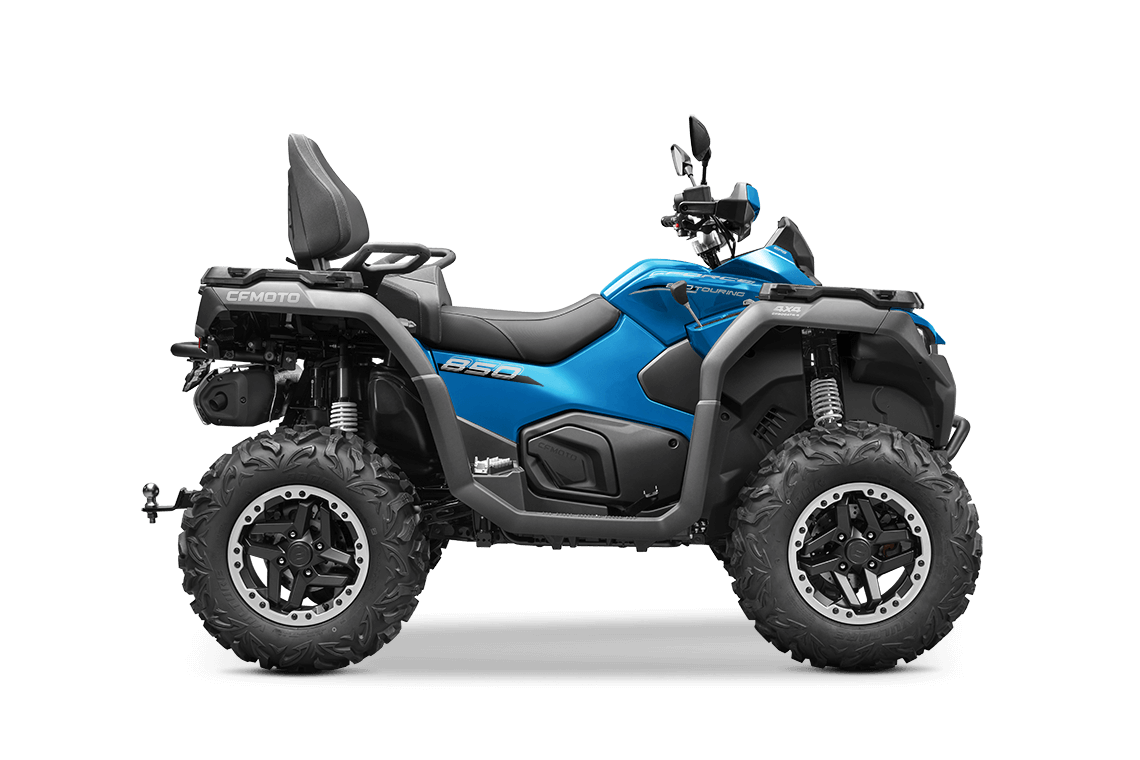

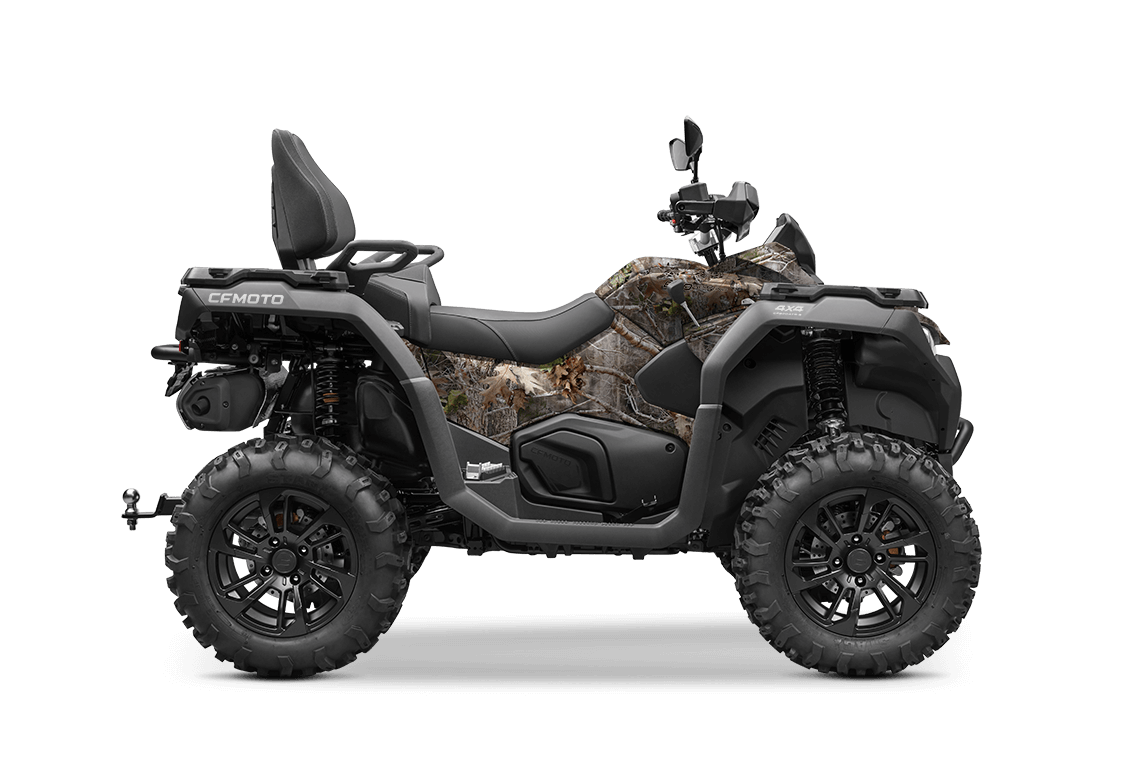

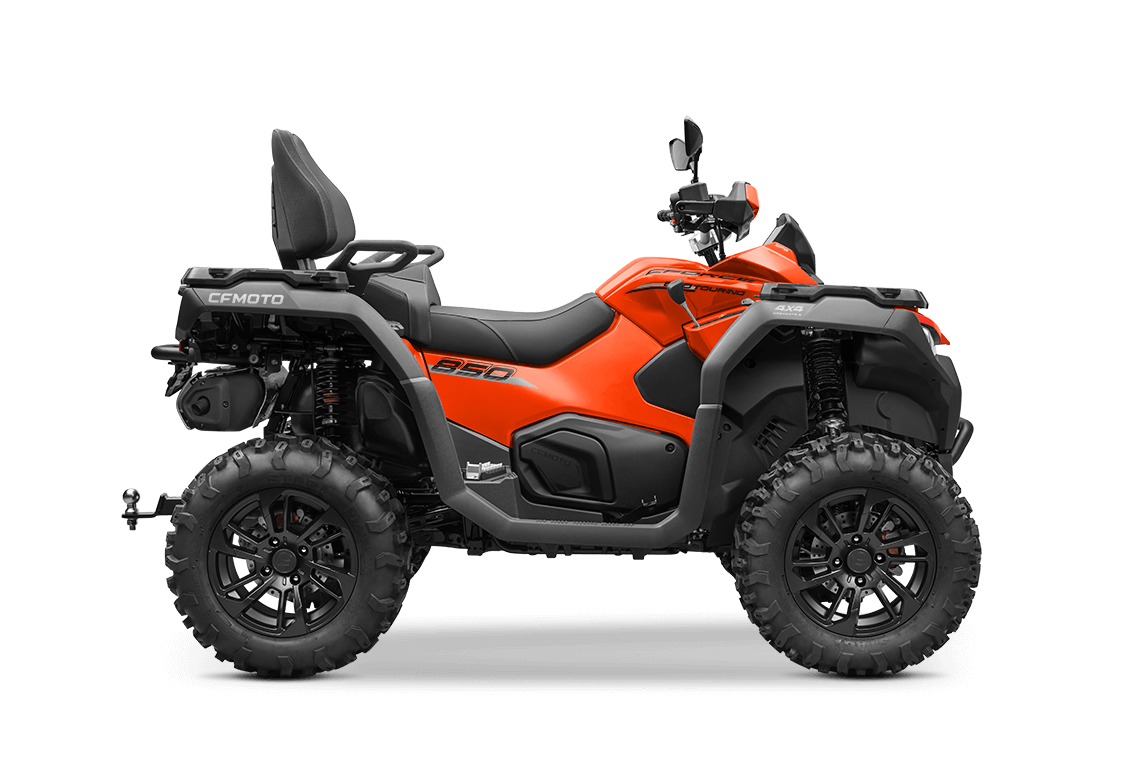

Colors

Tundra Grey/Lava Orange/True Timber Camo

Drive

2WD/4WD/4WD Lock (front differential)

EPS

Triple-Mode EPS

Brake

Four-wheel hydraulic disc brakes, single-piston caliper

Suspension

Front suspension: high clearance A-arm independent, 230mm travel.
Rear suspension: trailing arm independent, 236mm travel

Shock Absorber

Coil spring shock absorbers with oil dampening

Rim

14-inch alloy.
14-inch alloy Beadlock (premium)

Tire

Front: 26X9.00-14
Rear: 26X11.00-14
