U10 PRO & U10 PRO HIGHLAND

Start Customizing

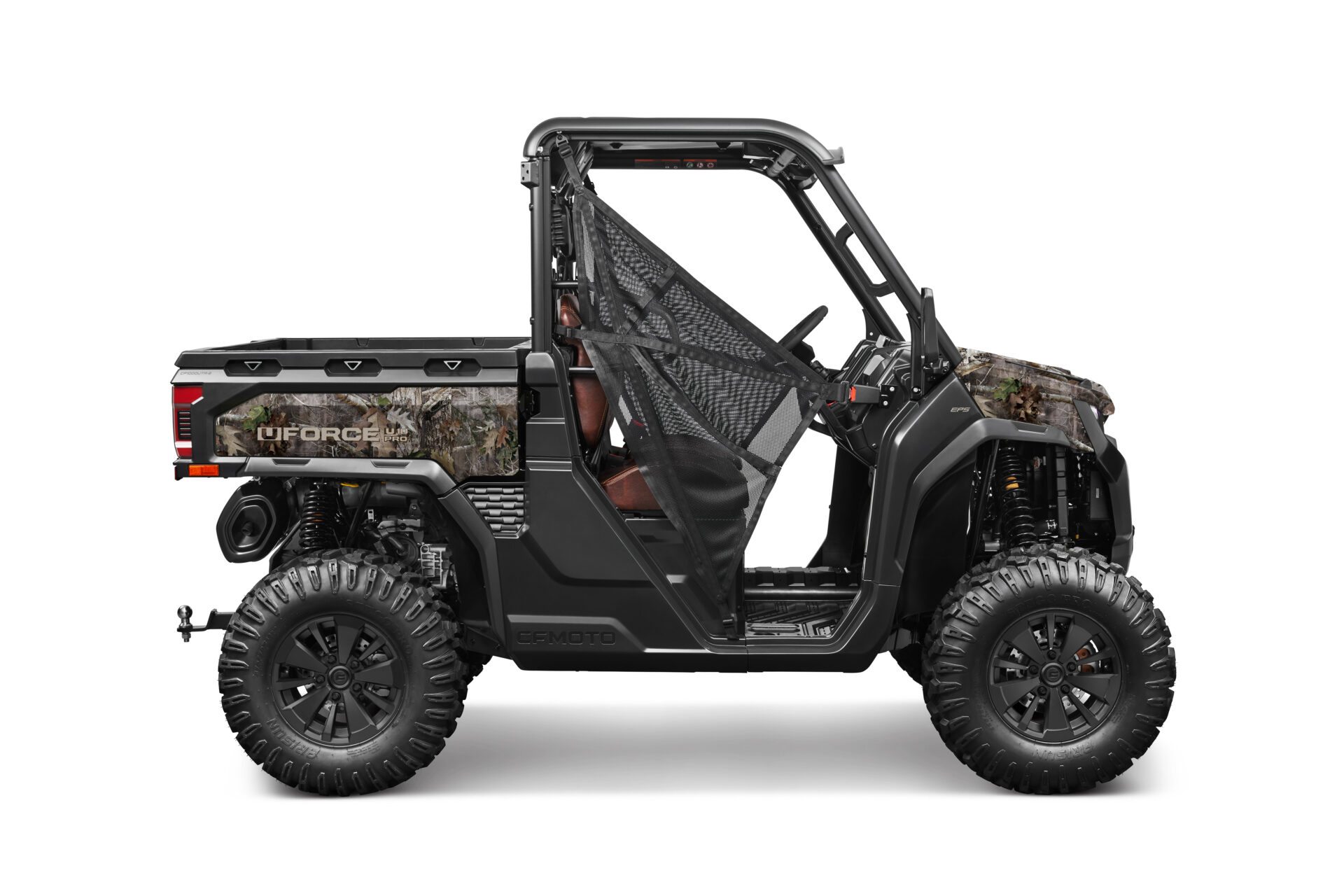

U10 PRO_TT KANATI_Right_int
cq5dam.web.1280.1280 (6)

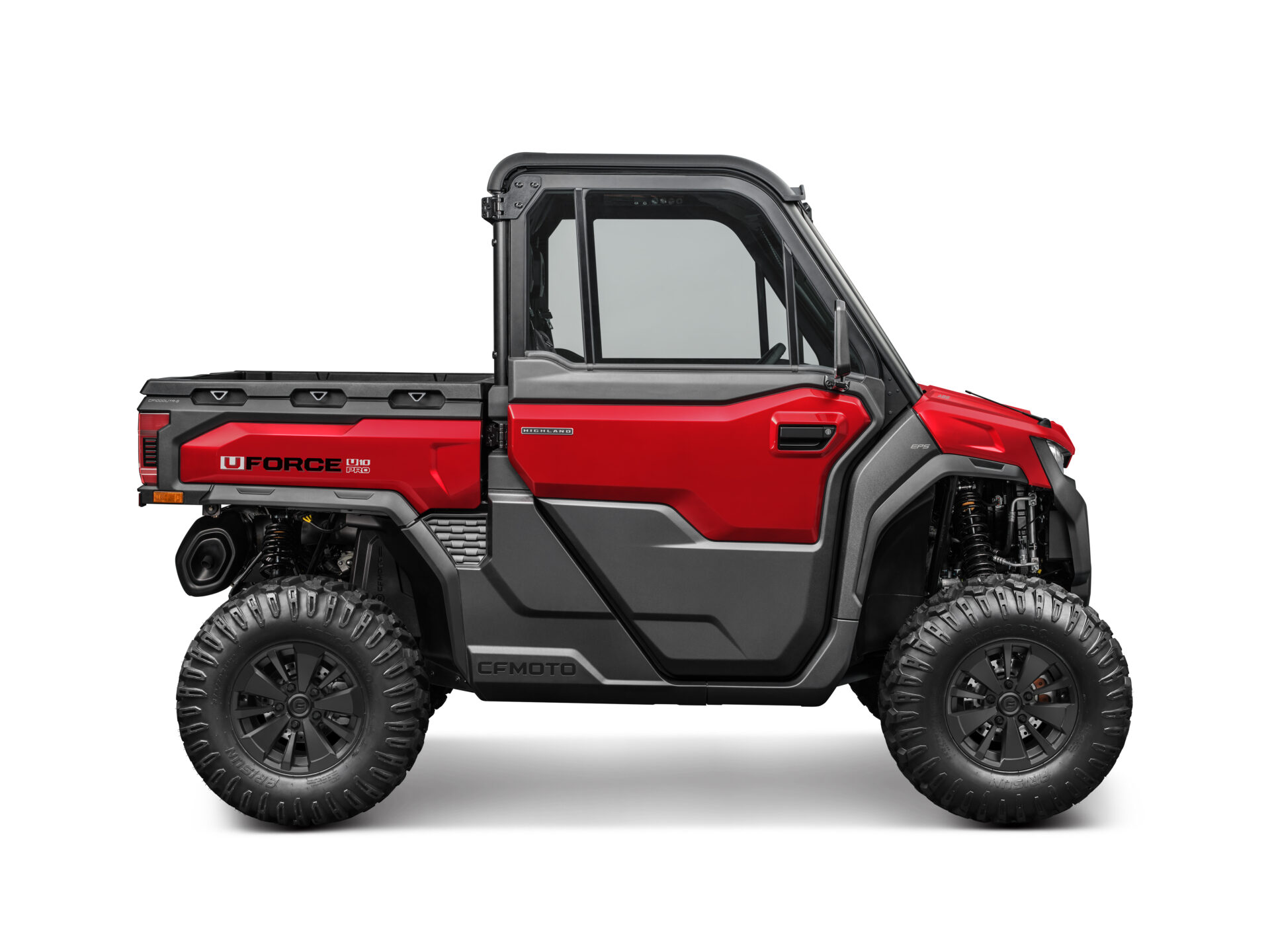

U10 PRO HIGHLAND_Bordeaux Red_Right_eu

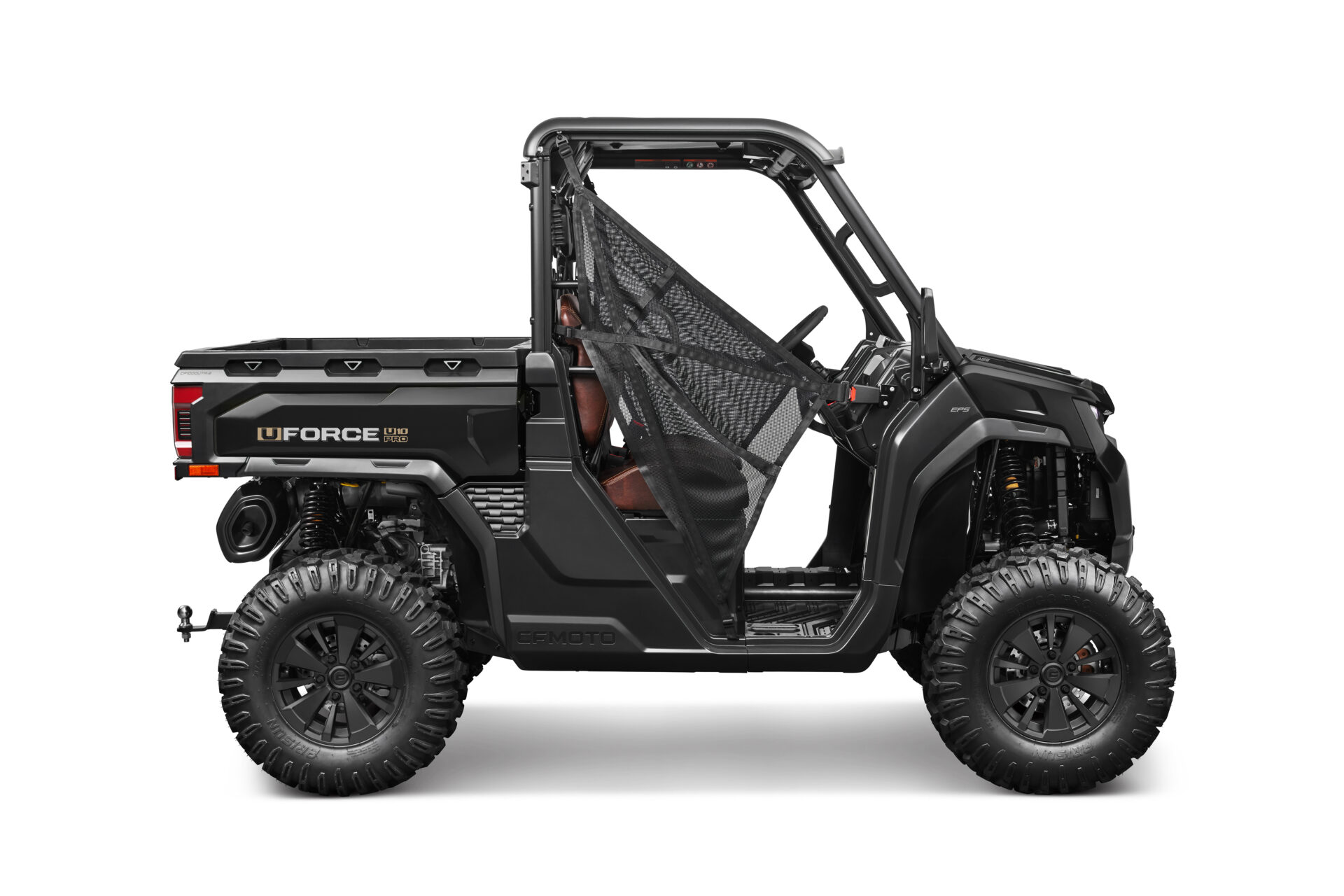

U10 PRO _Nebula Black_Right_int

Specifications

Engine Type

Triple-cylinder, 4-stroke, liquid-cooled, DOHC

Displacement

998cc

Maximum Power

90hp@7250rpm

Maximum Torque

94.5N.m@6500rpm

Fuel Supply

BOSCH® EFI

Transmission

CVT, P-R-N-H-L

Length x Width x Height

U10 PRO : 3097*1645*1945mm
U10 PRO HIGHLAND : 2965*1645*1945 mm

Wheelbase

2060mm

Ground Clearance

330mm

Fuel Capacity

45L

Colors

Bordeaux Red/TT KANATI/Forest Green

Drive

2WD/4WD/4WD Lock

Brake

front dual disc/rear single disc

Suspension

Front:High clearance Double A-arm independent, 280mm travel Rear:Double A-arm independent, 260mm travel

Shock Absorber

Front/Rear: Spring pre-load adjustable, oil damped

Rim

14-inch alloy

Gallery
